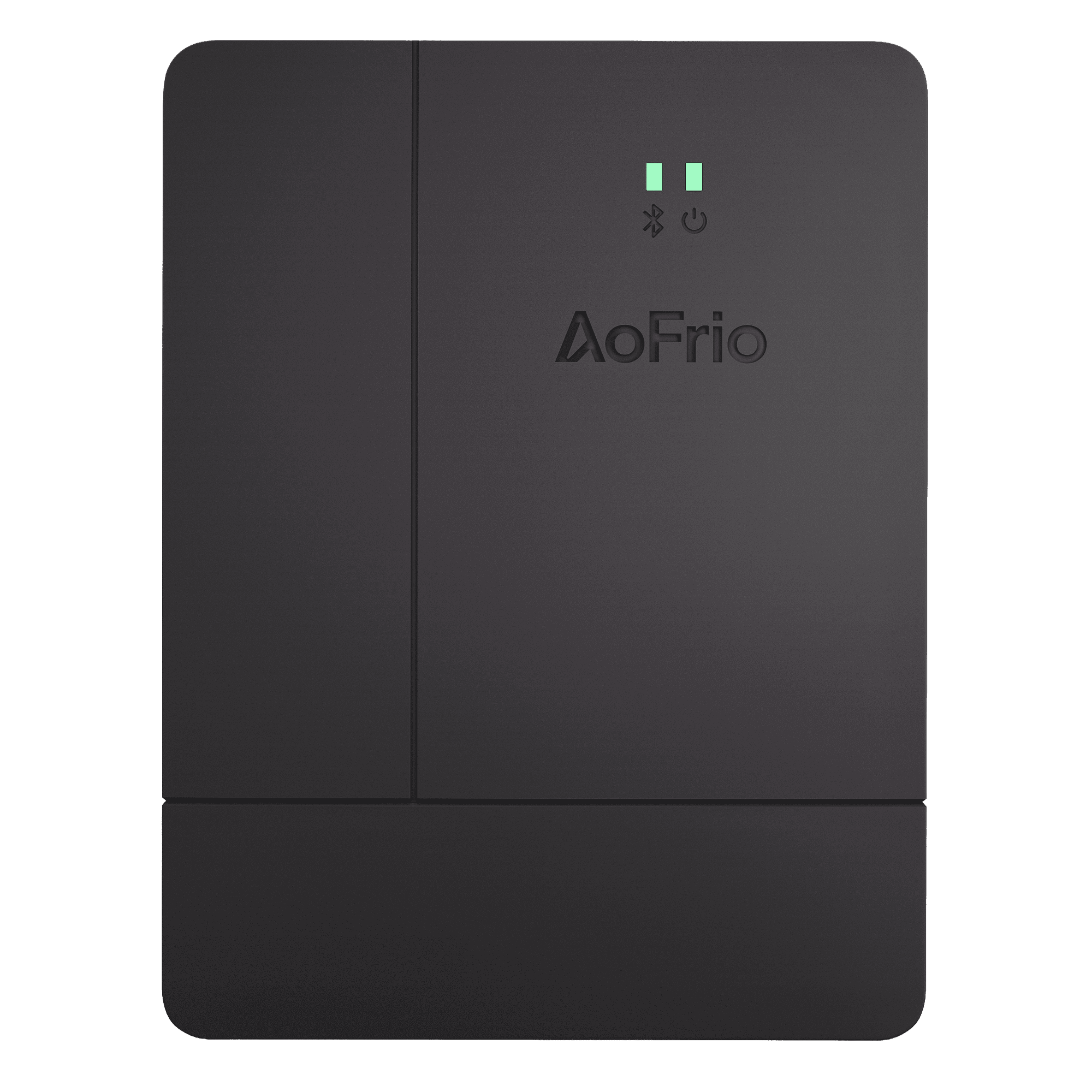

SCS 800 Cellular Refrigeration Controller
Add a display to suit your cooler

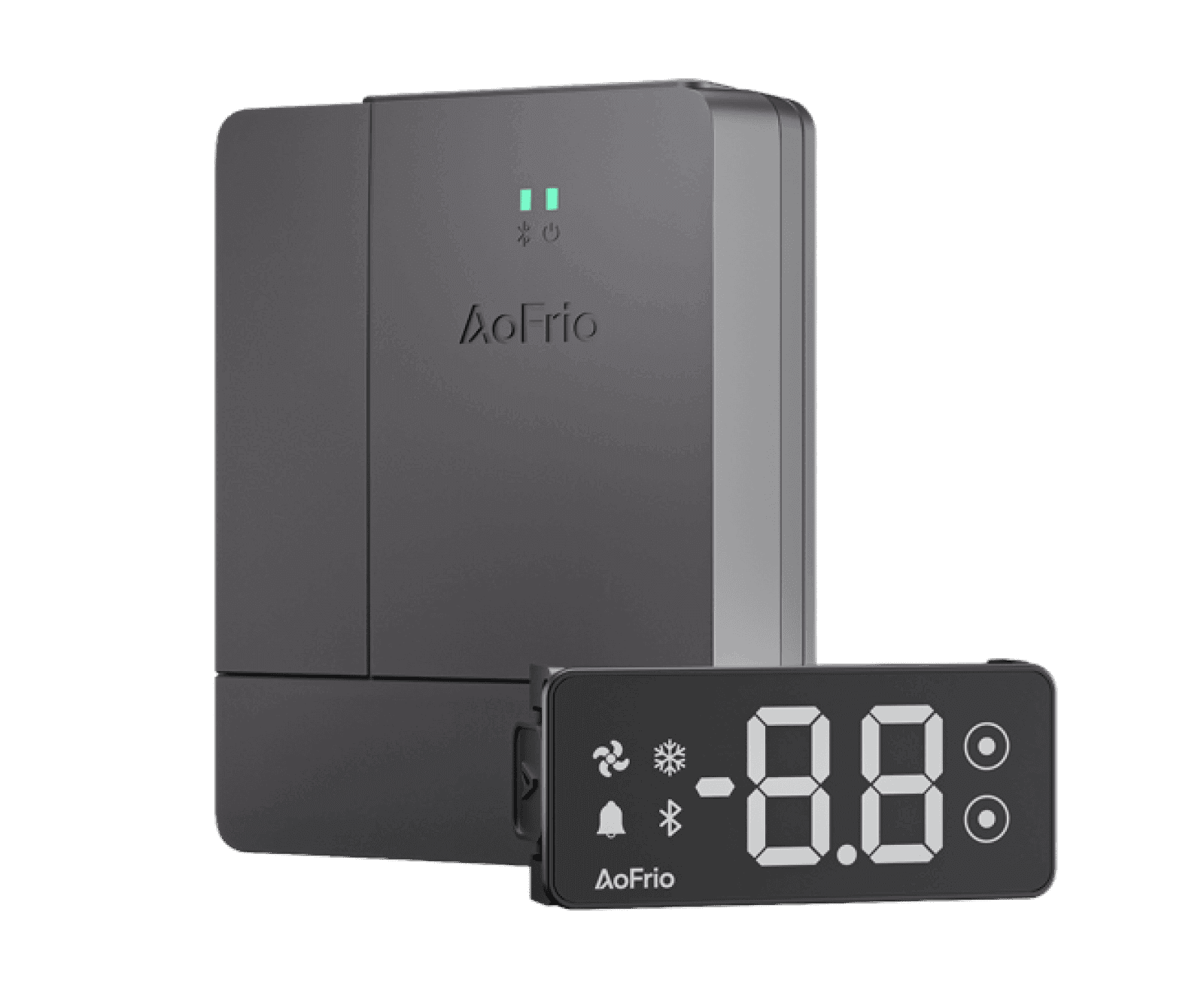

The SCS 800 runs with no display, or with an AoFrio VIS display that makes cabinet temperature and status visible at a glance and includes indicators for Bluetooth, alarms, fan and compressor.
Displays come in white, green or blue, with bulkhead-mount and projection options to suit each design:
- Bulkhead-mount displays in three sizes: VIS20 (24 mm digits), VIS30 (34 mm digits) and VIS60 (61.7 mm digits). All include Standby and Defrost buttons.
- Projection display option: the VIS60-P, a projection version of the VIS60 that surface-mounts to the glass door and displays through the glass.
Specifications
Downloads
SCS 800 Specifications
Drawing on 24+ years of refrigeration experience, the SCS 800 combines AoFrio’s most advanced IoT features with built-in cellular connectivity and optional VIS displays – flexible enough for almost any cooler, freezer or install type.
Cellular
Bluetooth
Geolocation
Backup power
Sensor inputs
User configurable: NTC, PTC, digital
Control outputs
2 high-voltage relays, 2 high voltage triacs, 3 PWMs, 1 VSC control,1 Pout, 1 display
Input voltage
Voltage output
Maximum output current
Operating temperature
UL -20°C to +50°C (-4°F to +122°F)
Ingress protection
Weight
Dimensions
Display
Our solutions
One connected ecosystem. Richer insights.
The SCS 800 is part of AoFrio's iQ solution, the complete IoT ecosystem for cooler management combining hardware, apps and platform – all from a single vendor. The SCS 800's built-in cellular delivers regular, reliable data, so you see what your fleet is actually doing, delivering unified control, richer fleet-wide insights, and measurable results across every refrigeration asset.
Testimonials
What our clients are saying
"We would like to share our experience working with the AoFrio team, which has been very positive. We especially highlight the support we have received from all the areas involved, as they have always been attentive to our needs. Throughout this long journey, we have significantly improved the control of our equipment thanks to the tools we are using."
Bebidas Del Paraguay
Cold Chain Supervisor
SCS controller resources and case studies
SCS 800 FAQs
The SCS 800 provides always-on 4G LTE cellular connectivity (LTE Cat M1 or LTE Cat 1.bis) for daily data uploads, real-time alerts and remote management. It also includes Bluetooth for local commissioning and WiFi for enhanced geolocation tracking.
The SCS 800 includes a rechargeable Lithium-Ion capacitor providing one month or more of backup power. In low-power mode, it continues Bluetooth advertising and sends periodic location updates via cellular, with 24-hour check-ins by default to maximize battery life.
Yes. Through the AoFrio iQ platform, you can remotely adjust temperature setpoints for individual coolers or entire cohorts—ideal for seasonal changes, energy savings programs, or responding to specific operational needs without site visits.
Yes. The SCS 800 enables asset tracking using cellular and WiFi geolocation, helping you respond quickly to issues and monitor unauthorized cooler relocations, meaning fewer asset losses and simpler recovery.
The SCS 800 is engineered for simpler deployment with direct wiring into existing AC power and a separate mounting bracket for flexible installation.
Yes. The SCS 800 measures total cooler power consumption, including lighting, defrost heaters, variable speed compressors, and motors—providing complete visibility into energy usage to support cost reduction and sustainability reporting.
The SCS 800 runs with no display, or with an external AoFrio VIS display that shows cabinet temperature and status at a glance. Four models are available: the bulkhead-mount VIS20 (24 mm digits), VIS30 (34 mm digits) and VIS60 (61.7 mm digits), and the VIS60-P projection display. The VIS60-P surface-mounts to the glass door and displays through the glass, so no panel cutout is needed. All models offer white, green or blue digits and connect to the controller with a single plug-and-play cable.
